HAMMPACK JG-SYSTEM
Perform injections on a selected part of the lance
Seal the injection at any depth and fix the lances
Each element of the lance has spanner flats for a 12 / 15 mm spanner
Proven tools for injecting
Hammpack JG-SYSTEM injection lances, with 500mm and 1000mm solid and perforated section lengths. Balanced injection surface structure for both cement suspensions, geopolymers, acrylic gels and polyurethane resins.
Full-spectrum injection lances. Convenient to use with wrench entries (no more twisting injection lances with awkward pipe wrenches).
Arrowhead – allows injection directly at the ground (for solid injection lances) and/or perforated injection lances (full system compatibility). Fits JG-CONNECT-PER, JG-CONNECT injection lances.
Fixed (screw-in) blade – outlet holes allow injection along the entire length of the perforated lance at the desired section (system compatibility with full injection lance). Fits JG-END-PER injection lance.
The maximum depth of the work carried out depends on the ground conditions, in case of favorable conditions it can be up to 15 meters.
JG-CONNECT / JG-CONNECT-PER / JG-END-PER
JG-CONNECTOR 14 · PI-JG 18/150 · PI-LONGPACK 20/200

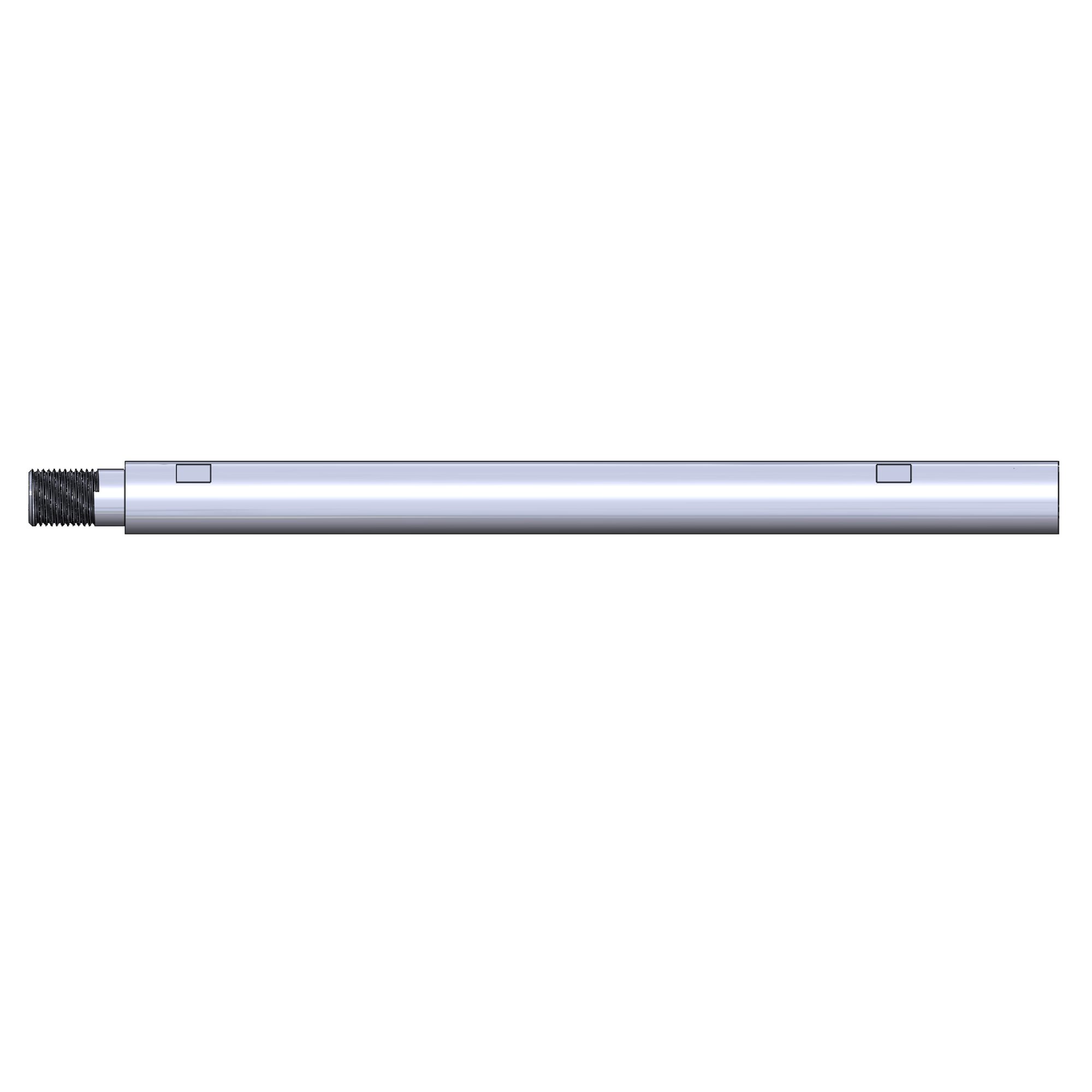

JG-CONNECT / JG-PER
JG-CONNECT-S / JG-PER-S

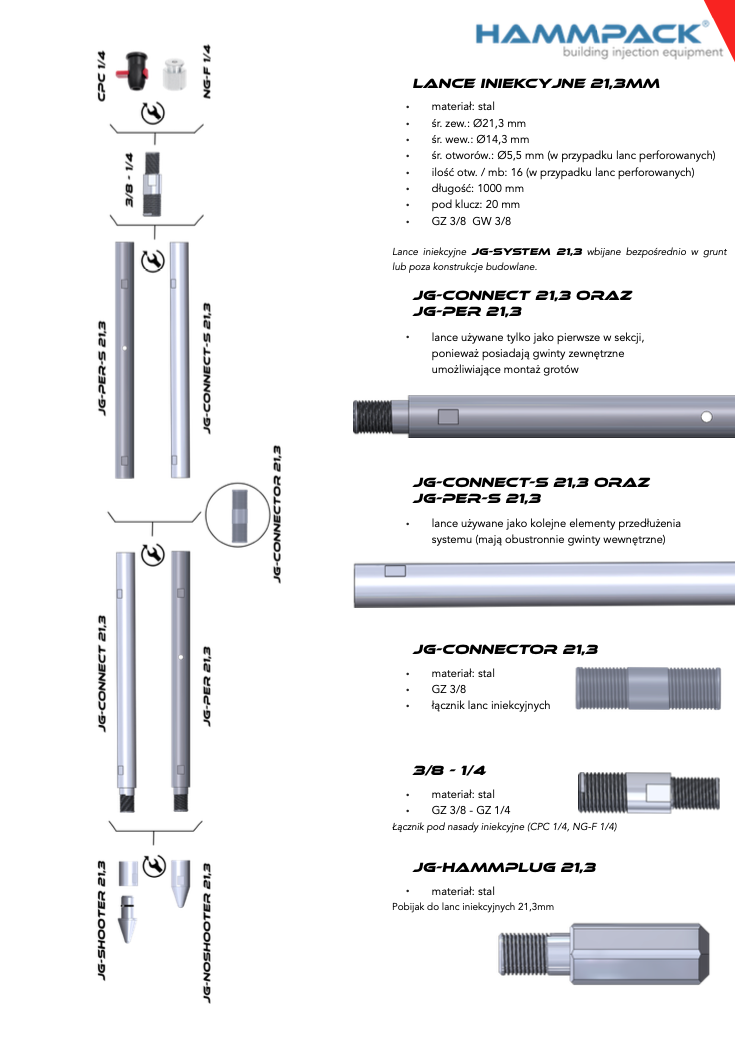

JG-CONNECTOR 21,3 · 3/8–1/4 · JG-HAMMPLUG 21,3
1. installation of the spearhead on the injection lance:
(a) press-in tip JG-SHOOTER
b) screw-in blade JG-NOSHOOTER
2. screw in JG-HAMMPLUG
3. hammering the lance with an impact hammer
4. unscrewing the JG-HAMMPLUG
5. Fit the connector JG-CONNECTOR 14
Installation of another part of the lance.
6 In order to reach the final depth, it is necessary to
repeat steps 2-5
