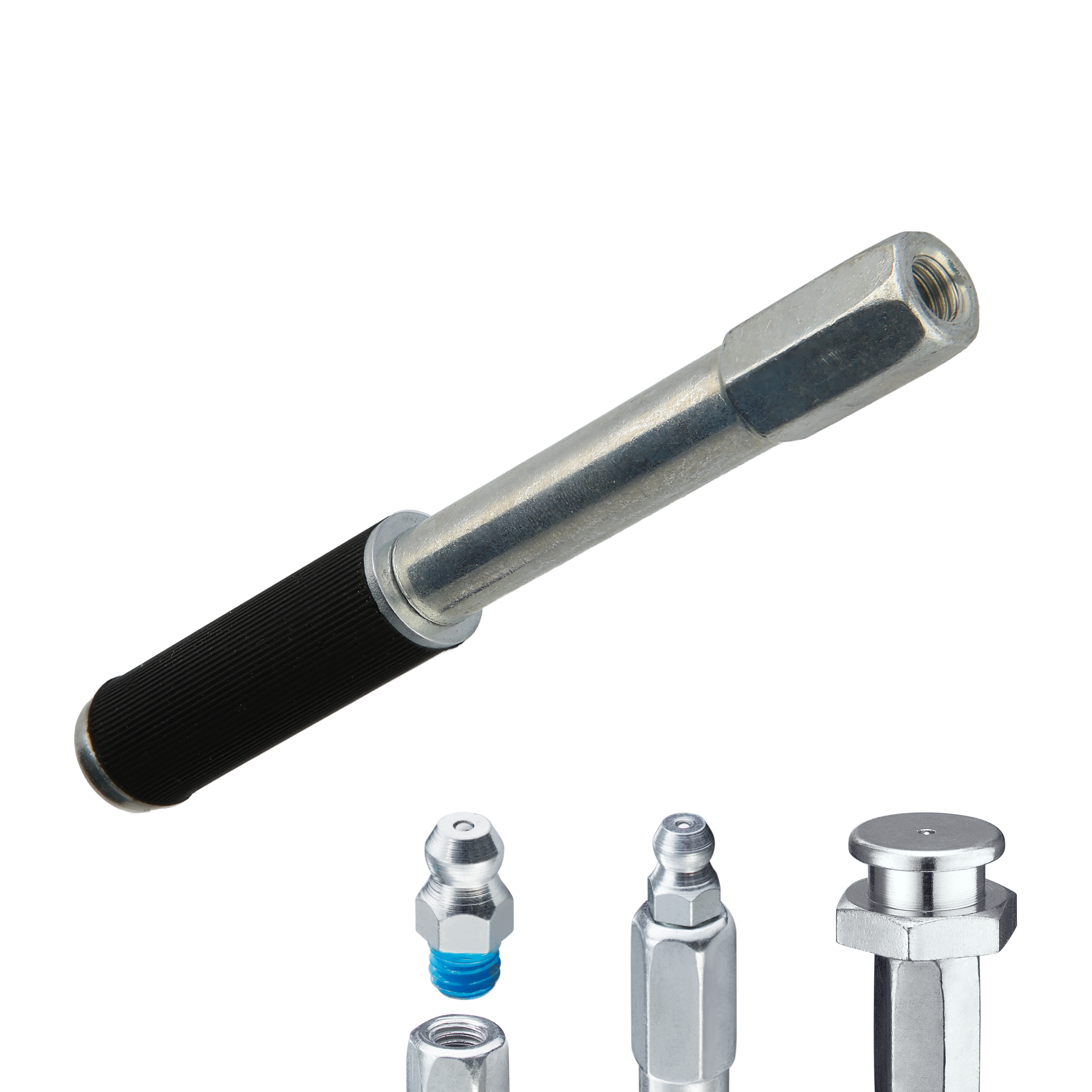

Injection Packer PI-SPM 13/110

  • Material: steel
  • Injection bore diameter: 14 mm
  • Length: 110 mm
  • Seal length: 39 mm
  • Spanner size: 10 mm
  • Single seal

Log in to see prices

This product is currently out of stock and unavailable.

Description

The flagship model for years PI-SPM packer series professionalline. The injector provides excellent sealing and anchoring. The injector is suitable for any type of injection. The nipple and expanding seal provide sealing during both low- and high-pressure injection.

Thanks to special nipples packers perfectly hold the back pressure (“do not leak”).

Packers with SWG nipple, are mechanically tightened with anaerobic glue, guaranteeing a tight connection of the m6x1 thread.

The PRE nipple packers have pre-applied threads, which results in immediate tightness when the nipple is twisted.

Technical information

  • Material: steel
  • Injection bore diameter: 14 mm
  • Length: 110 mm
  • Seal length: 39 mm
  • Spanner size: 10 mm
  • Single seal

Source: HAMMPACK® 2026 catalogue.

Additional information

Nipple type

, ,
